Gleix Video Synth #8 // Glitch Hornet

Audiovisual synthesizer, feedback generator, and video FX processor.

This device is model no. GVS008 and is the first in the series to feature an external video input, and custom CNC’d front & rear panels. This machine is similar to The I.F.D. in terms of feature set, minus CV implementation and + the video input. The input allows this model not only to function as a synthesizer and internal feedback generator, but as a loopback for use with video mixers, and as a standalone glitchy video FX processor similar to the VGS35 & GVM002.

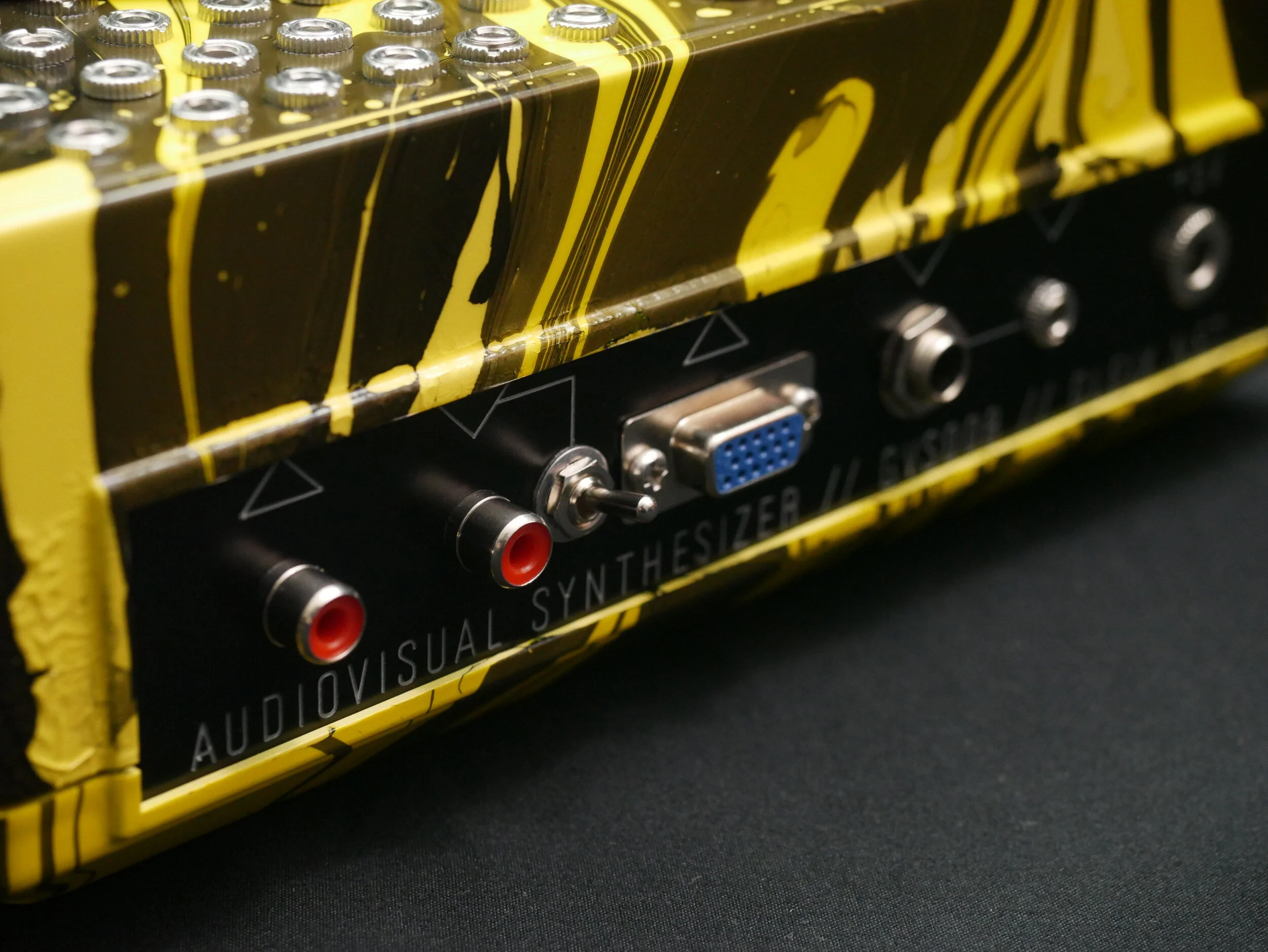

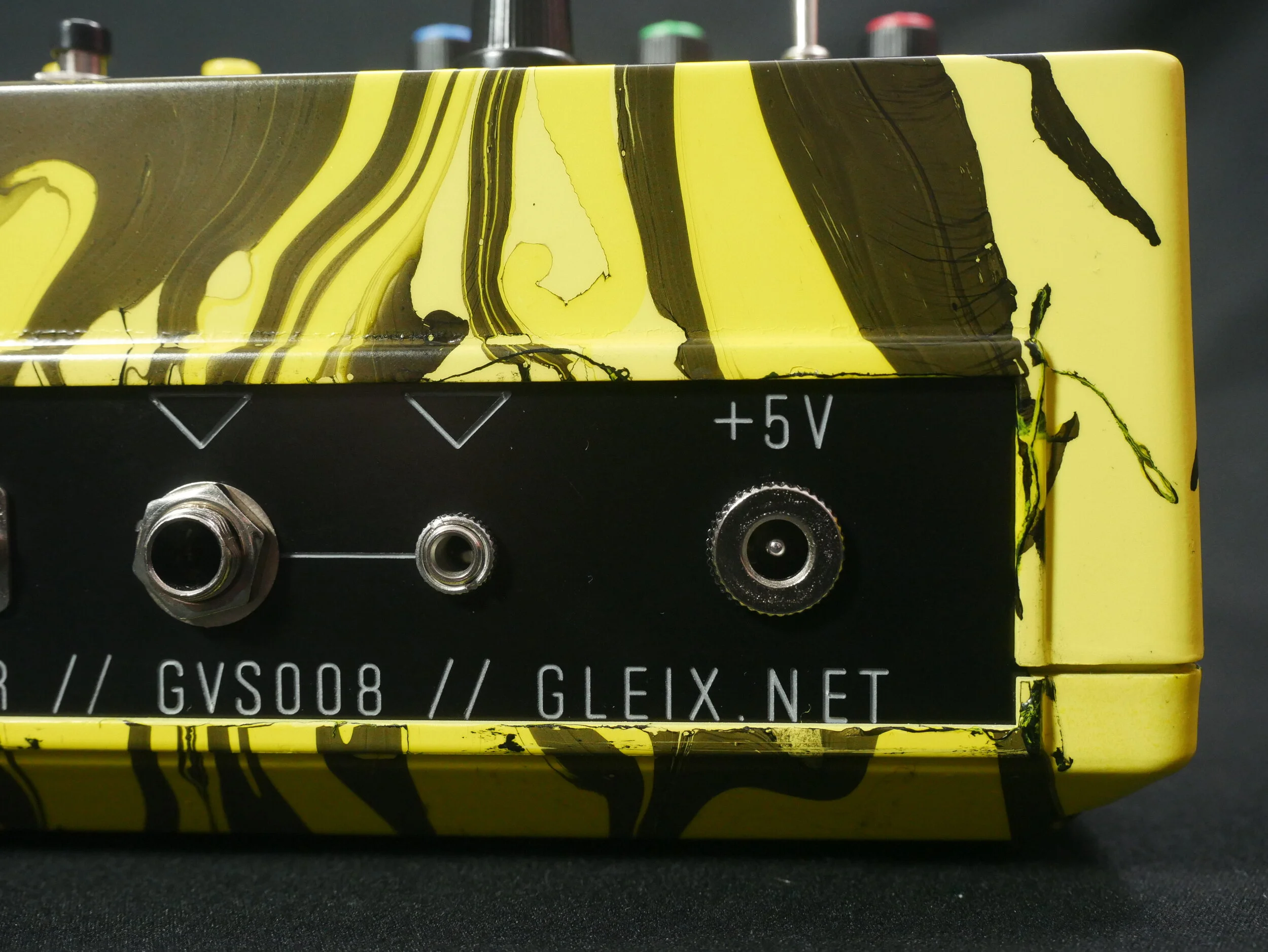

The I/O includes a composite video output, composite video input, a VGA output, an external audio input (1/8” and 1/4”), and a standard 2.1mm barrel jack for a 5v power supply.

On/Off button
Button & switch for freezing/holding the currently displayed image (new on this model)

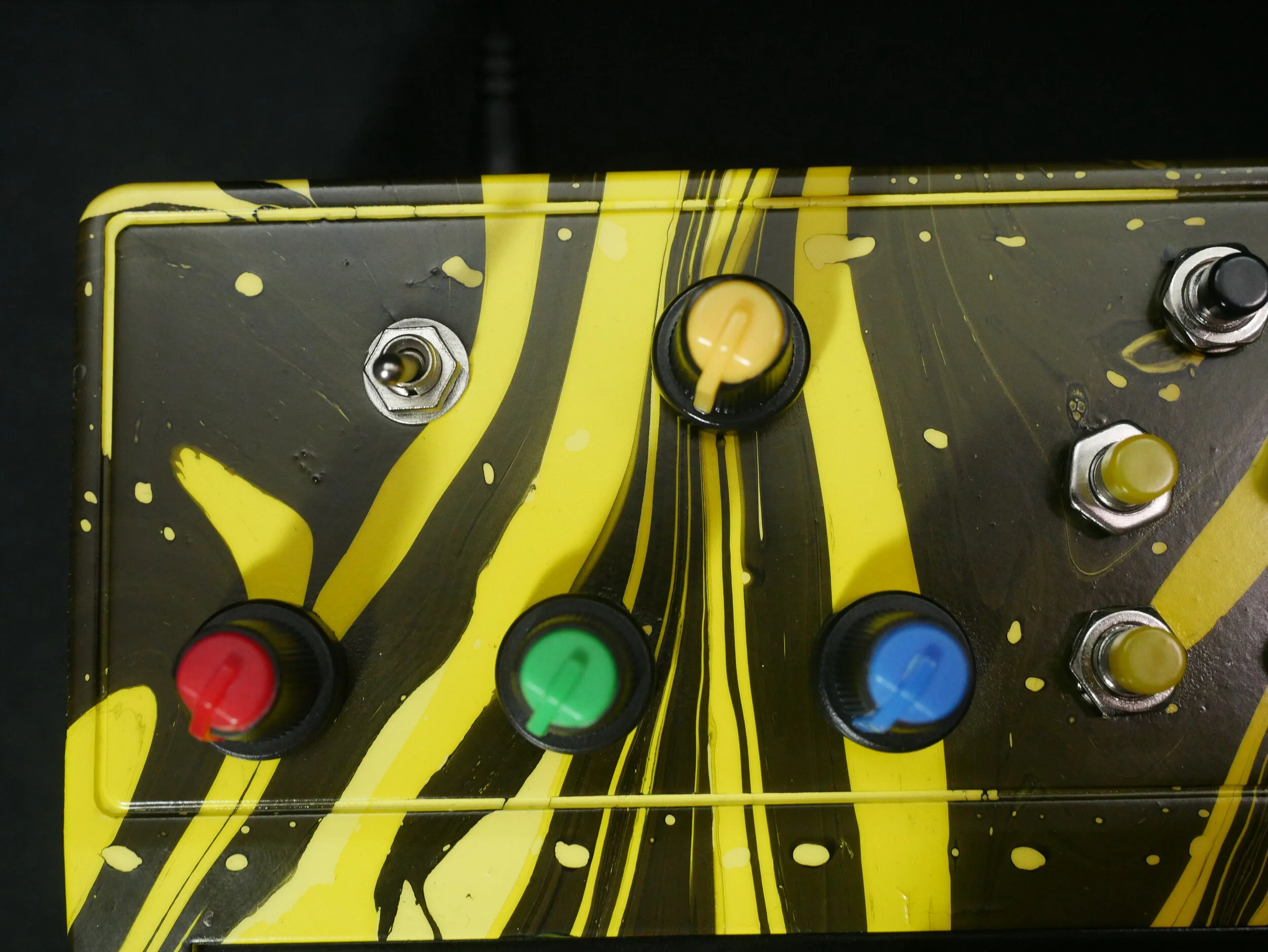

RGB Mix knobs
RGB pulse buttons

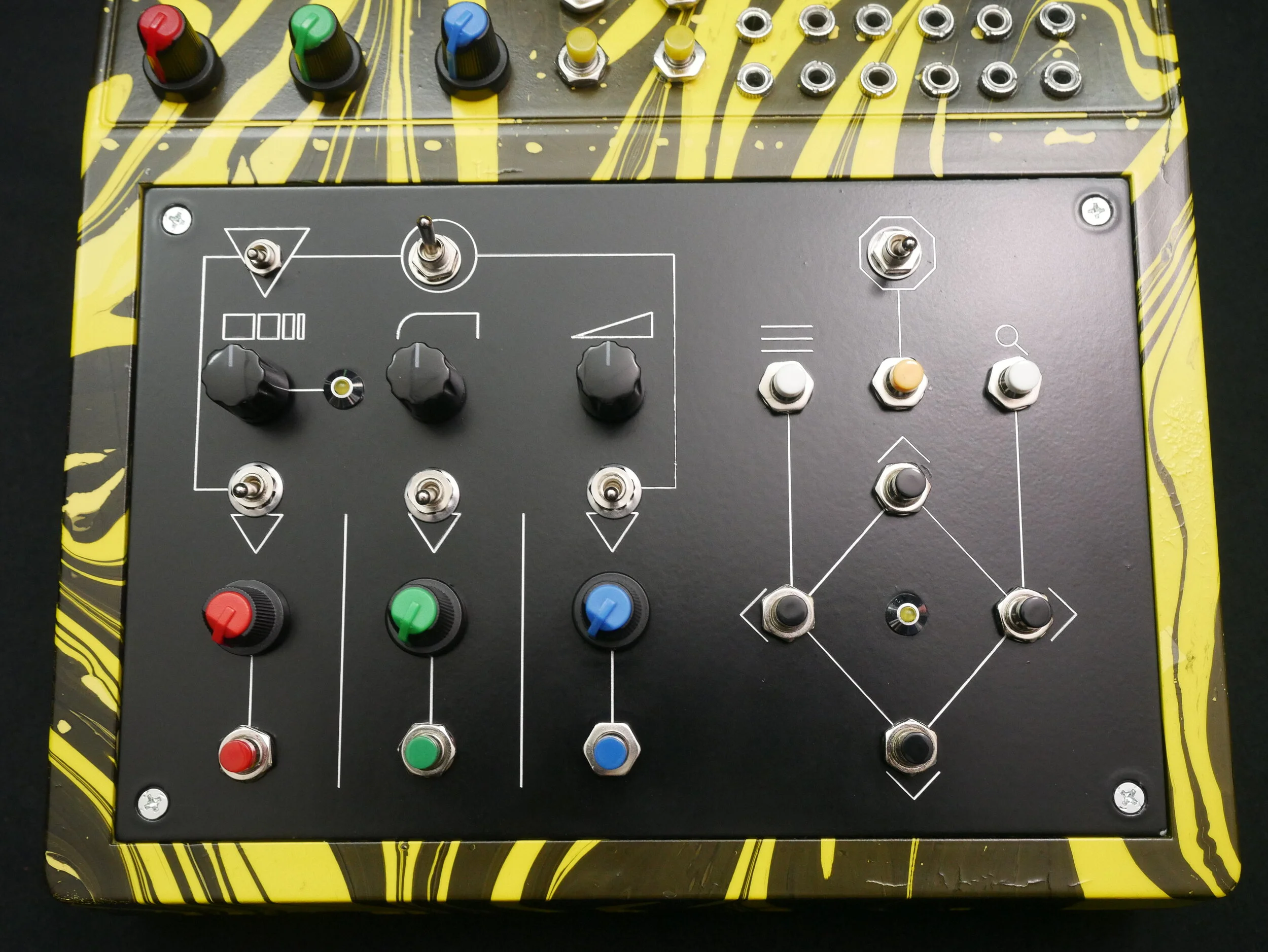

Oscillator
- On/Off
- Rate, Shape, Depth knobs
- Mode select (LFO vs standard oscillator for scanlines)
- Send switches for RGB channels
Image shift up, down, left, right, zoom adjustment buttons
Audio input, sends for RGB color channels
- Doubles as RGB assignable noise generator

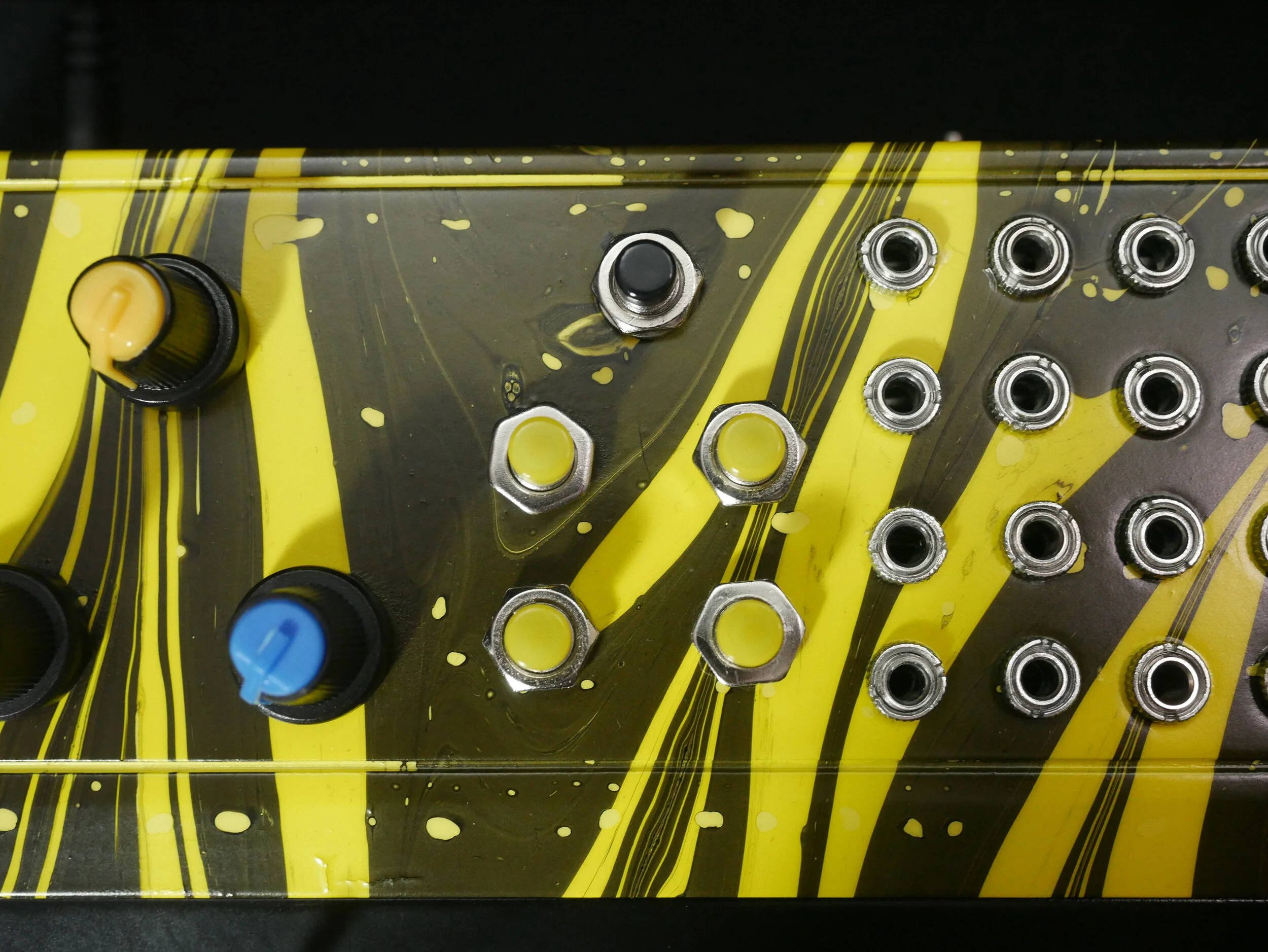

24 point patchbay for experimental glitches, routing audio in and out of the device, routing external signals into the device
* Switch for selecting internal feedback loop vs. external composite video source
* Switch for selecting between NTSC & PAL output
* CNC’d front panel & Rear I/O panel
